T-slotted Floor Clamping Rails
|
Floor clamping rails type A and B have a wide range of use. These rails placed in lines, for example 500 mm apart, provide the perfect economical solution for large erection sites.
|
|
|
|
|
|
|
|
The floor clamping rails are secured with anchor bolts to the foundation. After positioning and leveling with leveling screws the rails will be grouted. Single lengths should not exceed 6000 mm (236"). The surface of the floor clamping rails is broad planed and provided with central T-slots to DIN 650 along its length. Cast pockets are provided for inserting the T-bolts.
|
|
|
|
|
|
|
|

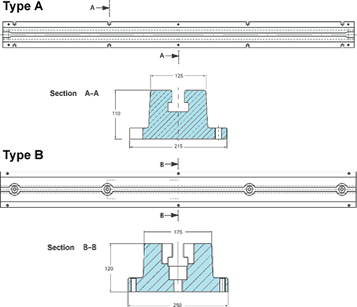

Type A rails are grouted to the foundation by means of M20 (3/4") anchor bolts positioned on the sides.
|
|
|
|
|
|
|
|
|
Type B rails are anchored in the center with M24 (7/8") bolts. Recommended grout is PAGEL V1/50.
|
|
|
|
|
|
|
|
The abutting surfaces are machined square to the top of the surface for the precise positioning of many single rails in one line.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
